Horizontal Directional Drilling Machines
Horizontal Directional Drilling (HDD) machines are used for trenchless installation of underground pipelines, cables and conduits beneath roads, railways, developed areas and other locations where continuous excavation is impractical. Riggers International supplies horizontal directional drilling machines for utility and infrastructure projects. Equipment can be selected according to crossing length, product diameter, ground conditions, pullback capacity, rotary torque and available working space.
Horizontal Directional Drilling for Underground Infrastructure
HDD creates a controlled underground bore while reducing the need for continuous open trench excavation. The installation typically involves pilot drilling, bore enlargement and product pullback. Machine capacity, drilling tools, reamers and supporting systems should be matched to the required installation and ground conditions.

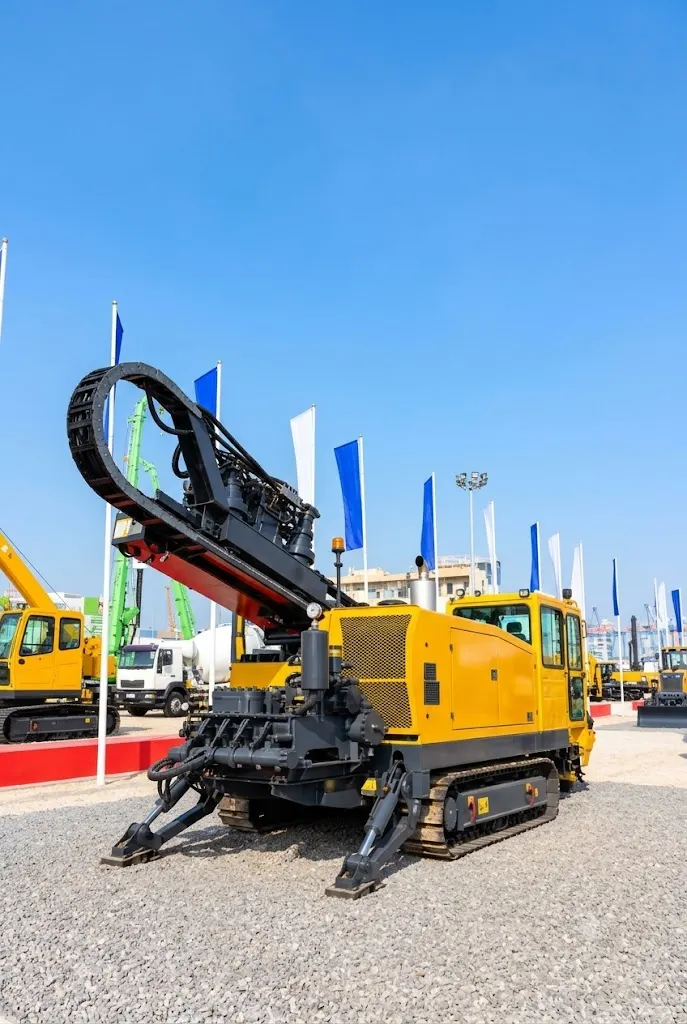

Types of HDD Machine
Heavy-Duty HDD Machines
Designed for larger pipelines, longer crossings and projects requiring greater thrust, pullback force and rotary torque.
Compact HDD Machines
Suitable for smaller utility installations and restricted jobsites where machine size and working space are important.
Trailer-Mounted HDD Machines
Provide a transportable drilling platform for contractors moving between suitable utility installation sites.
Skid-Mounted HDD Machines
Suitable for selected projects where the drilling unit operates from a prepared or fixed working position.
Applications of HDD Machines
Gas Pipeline Installation
Suitable HDD configurations can support underground gas pipeline projects based on product size and ground conditions.
Water Pipeline Installation
Used for trenchless installation of water pipelines beneath roads, developed areas and other surface obstacles.
Road and Railway Crossings
HDD enables utilities to pass beneath transport routes while reducing continuous surface excavation.
River and Waterway Crossings
Higher-capacity HDD machines can support selected crossings beneath rivers, canals and other waterways.
Fibre and Telecommunication Networks
Supports trenchless installation of fibre-optic ducts and communication infrastructure.
Power and Utility Conduits
Used to create underground routes for electrical cables and utility conduit systems.
How to Select the Right HDD Machine
Site Space
Entry area, drill rod handling space, machine dimensions and access should be considered before selecting equipment.
Crossing Length
Longer installations may require greater machine capacity, drill-string capability and fluid-management requirements.
Pullback Force
Pullback capacity should be suitable for the product size, bore length and expected installation resistance.
Rotary Torque
Torque influences drilling and reaming performance across different formations and bore sizes.
Product and Bore Diameter
Pipe or conduit size affects the required bore enlargement, reamer size and pullback capacity.
Ground Conditions
Soil, mixed formations and rock require different pilot tools, reamers and drilling systems.

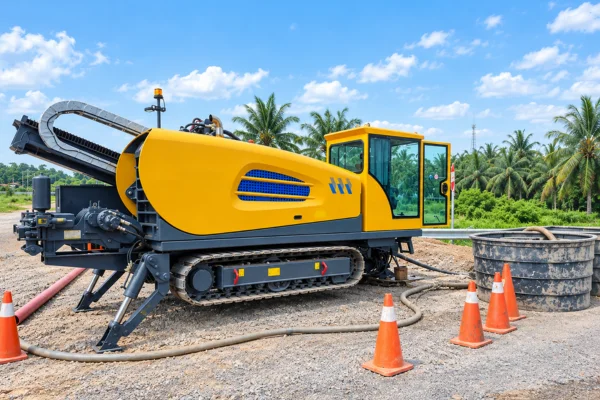

Features of Horizontal Directional Drilling Machines
Actual specifications depend on the selected HDD machine.
- High thrust and pullback capacity
- High-torque rotary system
- Hydraulic drilling controls
- Guided pilot drilling capability
- Adjustable drilling angle
- Drill rod handling system
- Reaming-tool compatibility
- Drilling-fluid system support
- Compact and heavy-duty options
- Rock-drilling capability on suitable models
Why Choose Riggers International?
Project-Based HDD Selection
Machine requirements can be discussed according to crossing length, product diameter, ground conditions and pullback requirements.
India and International Supply
Riggers International manufactures drilling equipment in India and supplies equipment for domestic and international projects.
Technical Equipment Guidance
Project specifications can be reviewed before equipment selection to help identify suitable machine capacity and tooling.
Equipment for Different Project Scales
Compact and heavy-duty HDD configurations are available for different utility and infrastructure applications.
Compatible HDD Tooling
Drill rods, pilot bits, reamers and suitable supporting equipment can be matched to the selected machine.
Ground-Specific Equipment Configuration
Machine and tooling requirements can be considered according to soil, mixed-ground and rock conditions.
Frequently Asked Questions
1. How does an HDD machine work?
The machine drills a guided pilot bore, enlarges the bore with suitable reamers and then pulls the required pipe or conduit through the prepared underground route.
2. What size HDD machine is required for a project?
Machine size depends on product diameter, crossing length, ground conditions, pullback force, rotary torque and available working space.
3. Can HDD machines drill through rock?
Yes. Suitable HDD machines can be configured with compatible rock-drilling systems and tooling for harder formations.
4. Can HDD machines install utilities beneath roads and railways?
Yes. HDD is commonly used for underground utility crossings where continuous surface excavation needs to be reduced.
5. What equipment is required with an HDD machine?
Typical supporting equipment includes drill rods, pilot bits, reamers, swivels, mud systems and locating equipment.
6. What affects HDD machine price?
Price depends on thrust and pullback capacity, rotary torque, machine configuration, drilling-fluid system, tooling and accessories.
7. What information is needed before buying an HDD machine?
Provide the required crossing length, product diameter, ground conditions, project location, bore requirements and available working space.
